ESTIA R32

Air-to-Water Heat Pump (Wall Mounted)

TECHNOLOGIE

Compresor dublu rotativ Inverter “DC Twin Rotary Inverter”

EFICIENTA

4kW > 11kW

DOMENIU OPERARE

Incalzire: -20°C to +25°C | Racire: +10°C to +43°C

CERTIFICARE

Keymark

TECHNOLOGIE

Compresor dublu rotativ Inverter “DC Twin Rotary Inverter”

EFICIENTA

4kW > 11kW

DOMENIU OPERARE

Incalzire: -20°C to +25°C | Racire: +10°C to +43°C

CERTIFICARE

Keymark

ENERGY EFFICIENCY & SUSTAINABILITY

The innovative ESTIA R32 range meets the increasing demand for alternatives to conventional heating solutions. A trend driven by growing awareness of the climate emergency and attractive government incentives to adopt more sustainable solutions. Delivering high levels of appeal through its impressive capacity specifications for space heating and hot water production, this  advanced air-to-water heat pump will also reduce energy bills compared to gas or oil boilers and electric heaters.



GUARANTEED COMFORT

With state-of-the-art liquid injection technology, Toshiba’s new twin rotary compressor enables ESTIA R32 to supply water to heating networks at temperatures that guarantee year-round comfort. This is true even during exceptionally cold periods (65°C leaving water temperature for sizes 8 & 11kW). For maximum well-being, ESTIA R32 also produces Domestic Hot Water even at exceptionally high outdoor temperatures (+43°C). 3, 6 or 9kW integrated back-up heater ensures additional Heating & DHW supply whenever needed.



EASY COMMISSIONING

  • Ultra compact Hydro modules with all components accessible from front panel
  • Easy wiring and connections

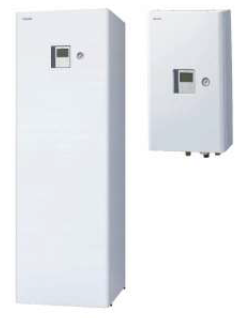

  • All-In-One indoor floor standing unit offers all water & refrigerant connections from the top
  • Wall Mounted indoor unit offers all connections from bottom
  • High efficiency components: brazed plate heat exchangers, electronic water flow control, variable speed pumps
  • Start-up tool for quick & easy commissioning

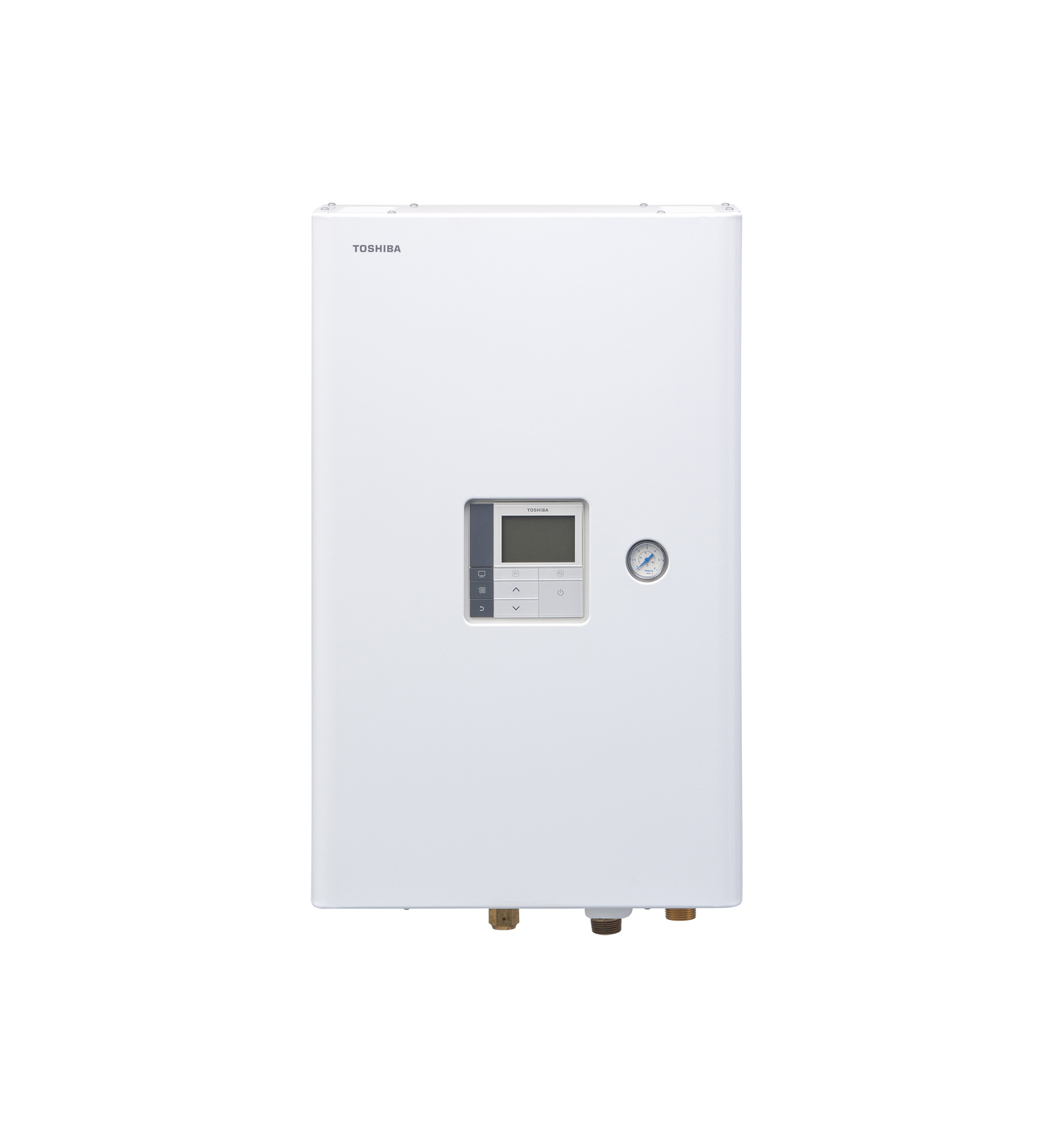

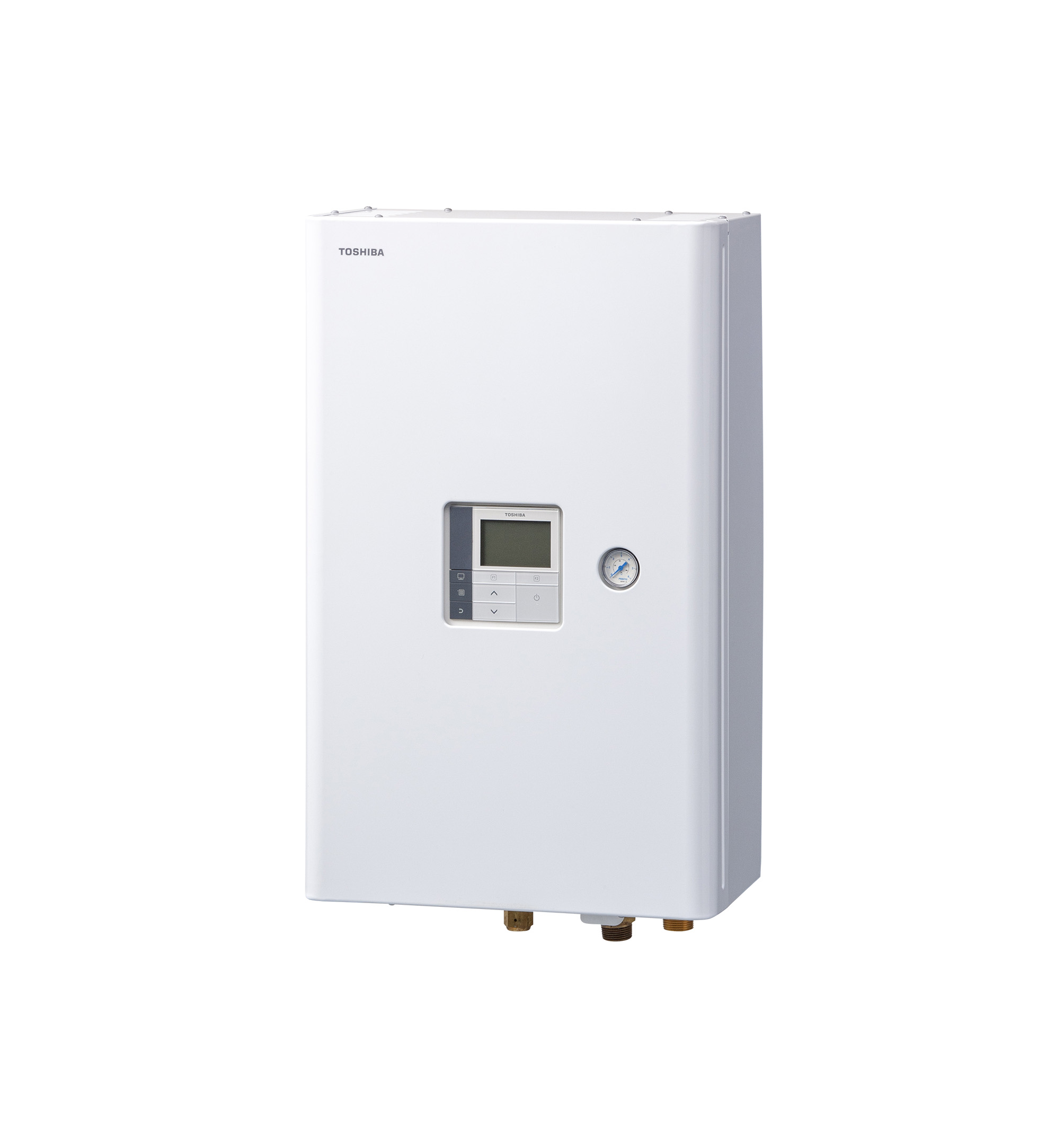

Wall Mounted Hydro Unit



Elegant and compact design ( H 7 2 0 xW45 0 x D 2 35mm) wall-mounted hydro module, to be combined with a choice of external cylinder capacities (150, 200 or 300  liters).

CONTROLUL ZONELOR

CONTROLUL ZONELOR

Două zone independente: sistemele de pompe de căldură Toshiba aer-apă pot gestiona două zone independente. Această soluție permite furnizarea apei către diverse terminale  la diferite temperaturi de până la 55°C.

COMPATIBILITATI

COMPATIBILITATI

Sistemele de pompe de căldură Estia pot fi utilizate în combinație cu diferite tipuri de terminale: radiatoare de încălzire existente la temperaturi joase, încălzire prin pardoseală sau ventiloconvectori.

VECTOR CONTROL

VECTOR CONTROL

Toshiba Inverter folosește noua unitate de acționare inteligentă a sistemului de control inteligent vectorial, care permite o gamă mai largă de frecvențe și tensiuni.

DOMENIU OPERARE

DOMENIU OPERARE

  • Incalzire: de la -20oC to pana la +25oC
  • Racire: de la +10oC to pana la +43oC
APA CALDA

APA CALDA

  • Producere apa calda pana la 55oC
  • Apa calda menajera : de la +40oC pana la  +75oC
TELECOMANDA

TELECOMANDA

Telecomanda este proiectată să fie simplă, intuitivă și ușor de utilizat.

KEYMARK CERTIFIED

KEYMARK CERTIFIED

Toshiba Estia Powerful Pompa de caldura sunt certificate de Keymark. Afla mai multe.
